Vehicle diagnostic tool WiFi Elm327 Fault code quickly clear I / M status detection OBD adapter fault repair decoder OBD + VAG OBD key Programmer EC

SPU: PSVC100
Trade name: car fault diagnosis instrument; obd diagnosis tool; car code reading card; Bluetooth car detector; factory direct selling (OBD connector).
technical parameter
Connection mode: Communication mode: Bluetooth dual mode (2.0 / 4.0)
Main control chip: 25K80
Support system: Android / Windows / Ios
Operating voltage: 9V / 16V
Operating current: 45mA
Operating temperature: -40℃ + 85℃
Working humidity: 60%
Product size: 45 * 40 * 18mm
Packing size: 110 * 70 * 30mm
Product weight: 82g
Quantity quantity: 90 pcs

product description

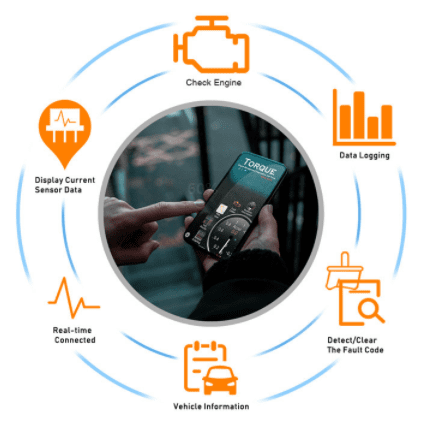

software function:
1. Read the generic and manufacturer-specific diagnostic trouble codes and show their meaning (more than 3000 generic code definitions in the database).
2. Clear the fault code and turn off the MIL ("Check engine" indicator)
3. Display the current sensor data; including:
4. Engine rotation speed
5. Calculate the load value
6. Coolant temperature
7. Fuel system status
8. Vehicle speed
9. Short-term fuel decoration
10. Long-term fuel decoration
11. Intake-air manifold pressure
12. Time time
13. Intake air temperature
14. Air flow rate
15. Absolute throttle position
16. Oxygen sensor voltage / associated short-term fuel trim
17. Fuel oil system status
18. Fuel oil pressure
19. Recommended APP; FOR Android: torque; OBD Home; FOR Apple: car scanner; OBD Auto Doctor; OBD Home
20. Small size; high chip integration; independent appearance patent; utility model patent and software copyright.
21. Certified by CE; FCC; and RoHS.

Support agreement
SAE J1850 PWM
SAE J1850 VPW
ISO 9141-2
ISO14230-4 KWP (5 baud init)
ISO14230-4 KWP (fast init)
ISO15765-4 CAN (11bit; 500 Kbaud)
ISO15765-4 CAN (29bit; 500 Kbaud)
ISO15765-4 CAN (11bit; 250 Kbaud)
ISO15765-4 CAN (29bit; 250 Kbaud)
SAE J1939 CAN (29 bit; 250 Kbaud)
